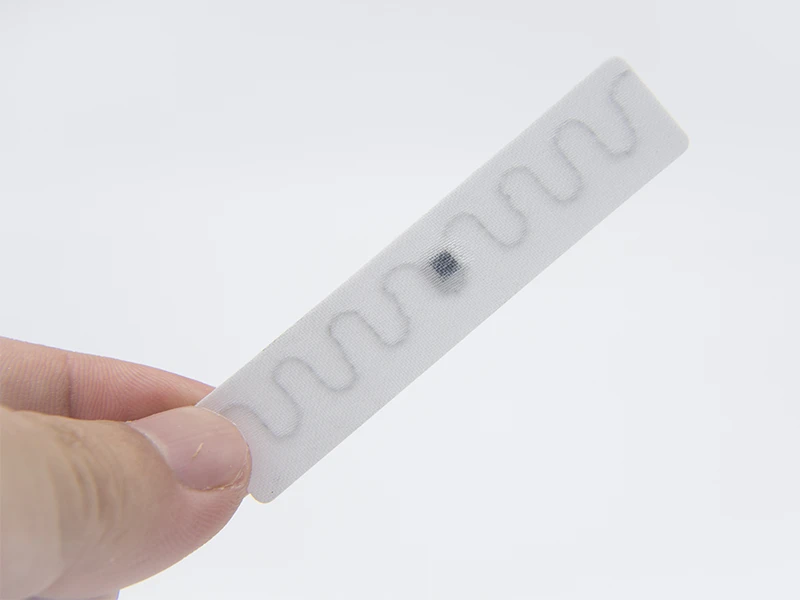

70*15mm U9XE UHF Laundry Tag
- Description
- Downloads
➊ Original Strength Factory-Factory Direct Sales, Excellent Prices
➋ International Certifications-ROSH, CE
➌ In-stock, express shipping – Ample inventory, fast delivery
➍ Quality Assurance-Strict Inspection, Premium Quality
➎ No Middlemen-Mixed Wholesale Supported
➏ After-Sales Guarantee Return or Exchange for Quality Issues
Product details
| Product Parameters | |
Model | KLW7015 |
| RFID Standard | UHF EPC Class 1 Gen 2, ISO 18000-63 |
| Frequency | 860-960 MHz(worldwide) |
| Length x Width | 70x15 mm (2.7 x 0.6 in) |
Thickness | 1.1 mm(0.04 in)on chip location only Rest of tag is 0.85 mm(0.03 in) |
| Weight | 0.6 g |
| Material | Polyester |
Chip Type | NXP Ucode 9xe |
Memory | EPC:128 bits; TID:96 bits |
Data Storage | > 20 years |
Re-write | 100,000 times |
Read Range(Fixed Reader) | >12m(39ft) |
| Read Range(Handheld Reader) | >7.5 m(25ft) |
| Installation | Sew: Sewn inside the hem or pouch Heat-sealing: Heat-seal the tag onto the textile at 210°C and 0.6-0.8 MPa for 20 seconds |
Warranty | 200 washing cycles or 3 years, whichever comes first |
| Washing Method | Laundry, Dry cleaning |
Water Extraction pressure | 60 bars |
Chemical Resistance | Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali |
| Washing Temperature | 90°C (194°F) /15 minutes |
| Pre-drying in Tumble | 180°C (356°F) /30 minutes |
| Ironing Tempereature | 185°C (365°F) /10 seconds |
Sterilization Tempereature | 135°C (275°F) /20 minutes |
Humidity/ Temperature-Operating | -20-+85°C (-68~+185°F) / 8~95%RH |
Personalization | Serial number, LOGO printing, Encoding, Antenna design.etc |
Applications | Industrial washing/Management of uniforms Medical apparel management/Military clothing management |
FAQ
Q1: Could I get a sample before placing an order?
A: Yes, we can offer the sample for you to test. Please let us know your requirements.
Q2: How long is your delivery time?
A: For small orders in stock, we will ship out within 1-2 working days. For large-volume or customised orders, production time varies with order quantity and customer requirements.
Q3: Do you accept OEM orders?
A: Yes. We accept OEM/ODM orders.
Q4: What is your MOQ?
A: It's usually 1000pcs depending on different products.
Q5: What is the plate fee?
A: If you need to customise your size, logo and craft, which is different from our standard process, there may be a plate-making fee.
Q6: How to guarantee the quality of your products?
A1: Strict detection during production and testing 100% before shipment.
A2: Strict sampling inspection on products before shipment and intact product packaging.
